| Specification | Details |
|---|---|
| Model | VX9800MC |
| Display Size | 98 Inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Response Time | 8ms |
| Refresh Rate | 60Hz |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1200:1 / 1300:1 / 6000:1 (Typical) |
| Color Gamut | 72% NTSC |
| Viewing Angle | 178° (H/V) |
| Touch Technology | Infrared Touch, Up to 40 Touch Points |
| Touch Tool | Finger and Passive Infrared Pen |
| Writing Technology | Single Stylus with Dual-Color Writing |
| Writing Accuracy | ±0.5mm |
| Writing Height | ≤0.99mm |
| Touch Response Time | ≤5ms |
| Minimum Object Size | 1.5mm |
| Camera | Built-in 50MP Camera with Sound-Source Localization, Portrait Tracking and 3D Noise Reduction |
| Camera Viewing Angle | D: 100° / H: 100° / V: 80° |
| Microphones | 8-Microphone Array, 0–8m Pickup Range, 0°–180° Pickup Angle, Echo Cancellation, Background Noise Suppression and Automatic Gain Control |
| Audio | 2.2 Channel Audio, 2 × 20W + 2 × 20W |
| Operating System | Android 15.0 |
| Processor | RK3588, Quad-Core Cortex-A76 + Quad-Core Cortex-A55, 2.4GHz |
| GPU | ARM Mali-G610 MC4 |
| RAM / Storage | 16GB RAM / 256GB ROM |
| Wireless | Dual-Band Wi-Fi 6, 802.11ac/b/g/n/ax, 2.4GHz / 5GHz, Bluetooth 5.2 |
| Touch Compatibility | Windows 10, Windows 8, Windows 7, Windows XP, Android, Linux, macOS and ChromeOS |
| Front Interfaces | 2 × USB 3.0, 1 × HDMI IN, 1 × Touch USB, 1 × Full-Function USB-C |
| Onboard Interfaces | 2 × USB 3.0, 1 × USB 2.0, 1 × USB-C IN, 1 × USB-C OUT, 3 × Touch USB 3.0, 3 × HDMI IN, 1 × DP IN, 1 × HDMI OUT, 1 × RS232, 1 × Optical, 1 × VGA IN, 1 × Audio IN, 1 × Line OUT, 1 × RJ45 IN and 1 × RJ45 OUT |
| External Modules | Pluggable Wi-Fi Module, NFC Module and Pen-Lifting Sensing Module |
| Power Consumption | Maximum 600W / Standby ≤0.5W |
| Dimensions (W × H × D) | 2227.5 × 1348.1 × 106.8 mm |
| Net / Gross Weight | 95.25 ±1kg / 136.4 ±1kg with Pallet |
| Mounting | VESA 1000 × 400 mm, M8 × 20mm Screws |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom

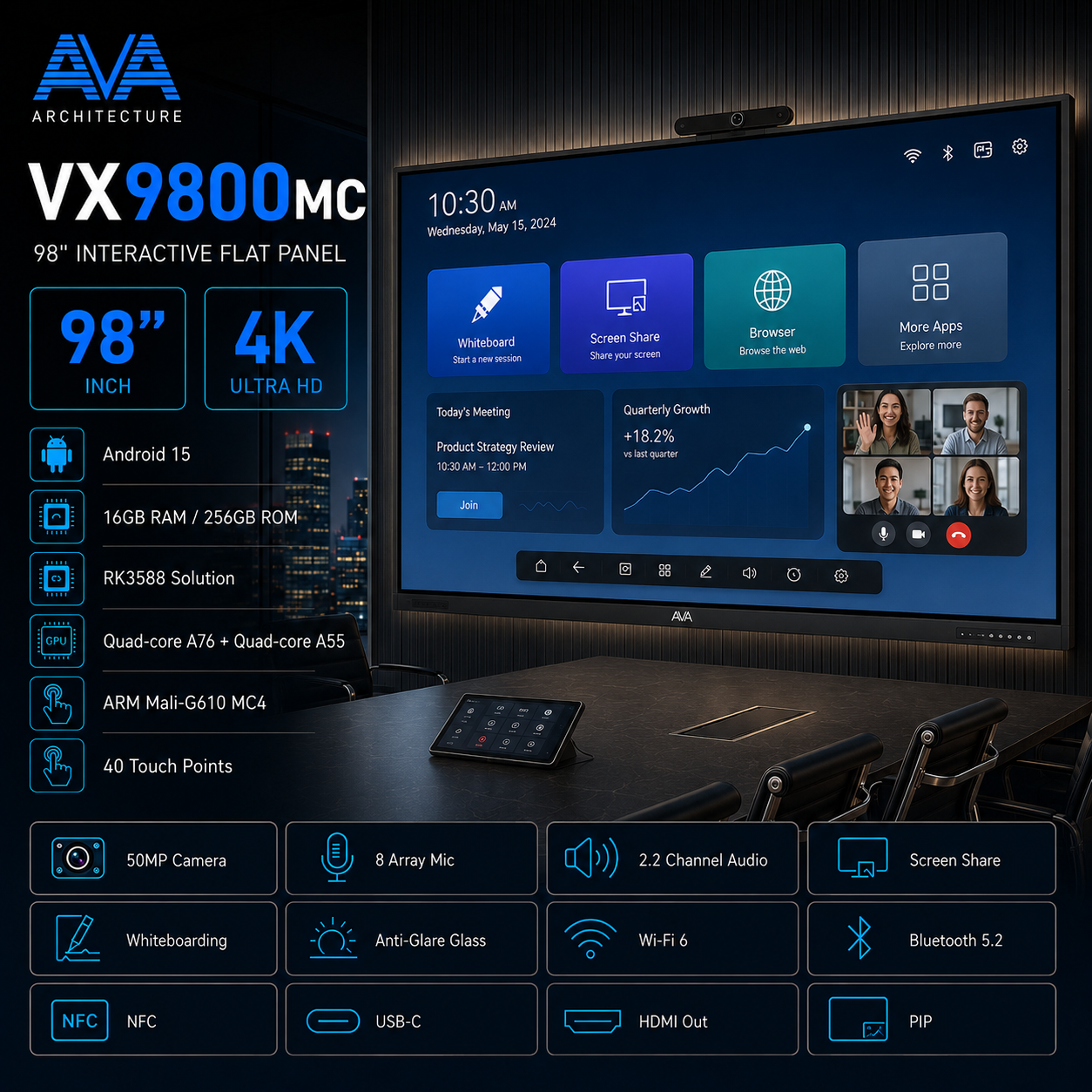

VX9800MC
AVA VX9800MC is a 98-inch ultra-premium interactive display tailored for high-end collaboration and immersive presentation experiences. With its 4K Ultra HD clarity, zero-bonding low-parallax panel, and anti-glare tempered glass, it provides an ideal combination of visual brilliance and writing comfort for modern boardrooms, lecture halls, and smart classrooms.
Equipped with Android 13, 16GB RAM, and a robust 8-core CPU, the VX9800MC delivers blazing-fast performance with AI-enhanced features such as voice control, auto-framing, and intelligent noise cancellation. It features a 50MP UHD camera, 8-mic array, dual Wi-Fi 6 support, and dual-pen input with multi-object recognition — making it the ultimate smart collaboration hub for enterprises and educational institutions.
