| Specification | Details |
|---|---|
| Model | AVA CX7500MC Interactive Flat Panel |
| Screen Size | 75 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Display Response Time | 8ms |
| Brightness | 400 cd/m² |
| Viewing Angle | 178° (H/V) |
| Display Glass | 3mm Anti-Glare Tempered Glass |
| Touch Technology | IR Touch, 50-Point Touch on Windows, 32-Point Touch on Android and 16-Point Touch in EDLA Mode |
| Touch Response Time | ≤2.5ms |
| Touch Accuracy | ±1mm, Writing Height ≤1mm |
| Writing Technology | Single Stylus Pen with Two-Colour Writing Support |
| Operating System | Android 14.0 |
| Processor | Quad-Core Cortex-A72 + Quad-Core Cortex-A53, 2.2GHz |
| Graphics Processor | G52 MC3 |
| Memory | 8GB RAM / 128GB ROM |
| Camera | 48MP Camera with Sound Source Localisation, Auto Framing, 4K Photography, Image Super-Resolution and Multimodal Recognition |
| Microphones | 8-Microphone Array with 0–8m Pickup Distance and 0°–180° Pickup Angle |
| Microphone Features | Intelligent Noise Reduction, Gain Control, Echo Cancellation and Reverberation Suppression |
| Sound | 2.0 Channel, 2 × 20W Speakers |
| Wireless Connectivity | Wi-Fi 6, Dual-Band 2.4GHz/5GHz, AP + STA Mode and Bluetooth 5.2 |
| Network | Gigabit Ethernet for Android and OPS |
| Front Interfaces | 2 × USB 3.0, 1 × HDMI IN, 1 × Touch USB, 1 × USB Type-C and 1 × Keys / Light Sensor / Remote-Control Receiver |
| Onboard Interfaces | 2 × HDMI IN, 1 × HDMI OUT, 1 × DisplayPort, 2 × USB 3.0, 1 × USB 2.0, 1 × Touch USB, 1 × VGA IN, Audio IN, Audio OUT, RS232, RJ45 IN, RJ45 OUT, SPDIF, USB Type-C and TF Card |
| Interactive Features | Wireless Screen Mirroring, Split Whiteboard, Parallel Tasks, Hover Ball Mode, Eye Protection and Automatic Brightness Adjustment |
| Power Consumption | Maximum 400W / Standby ≤0.5W |
| Dimensions (W × H × D) | 1709 × 1039 × 99.4 mm |
| VESA Mount | 800 × 400 mm |
| Net Weight | 42 ± 1 kg |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom

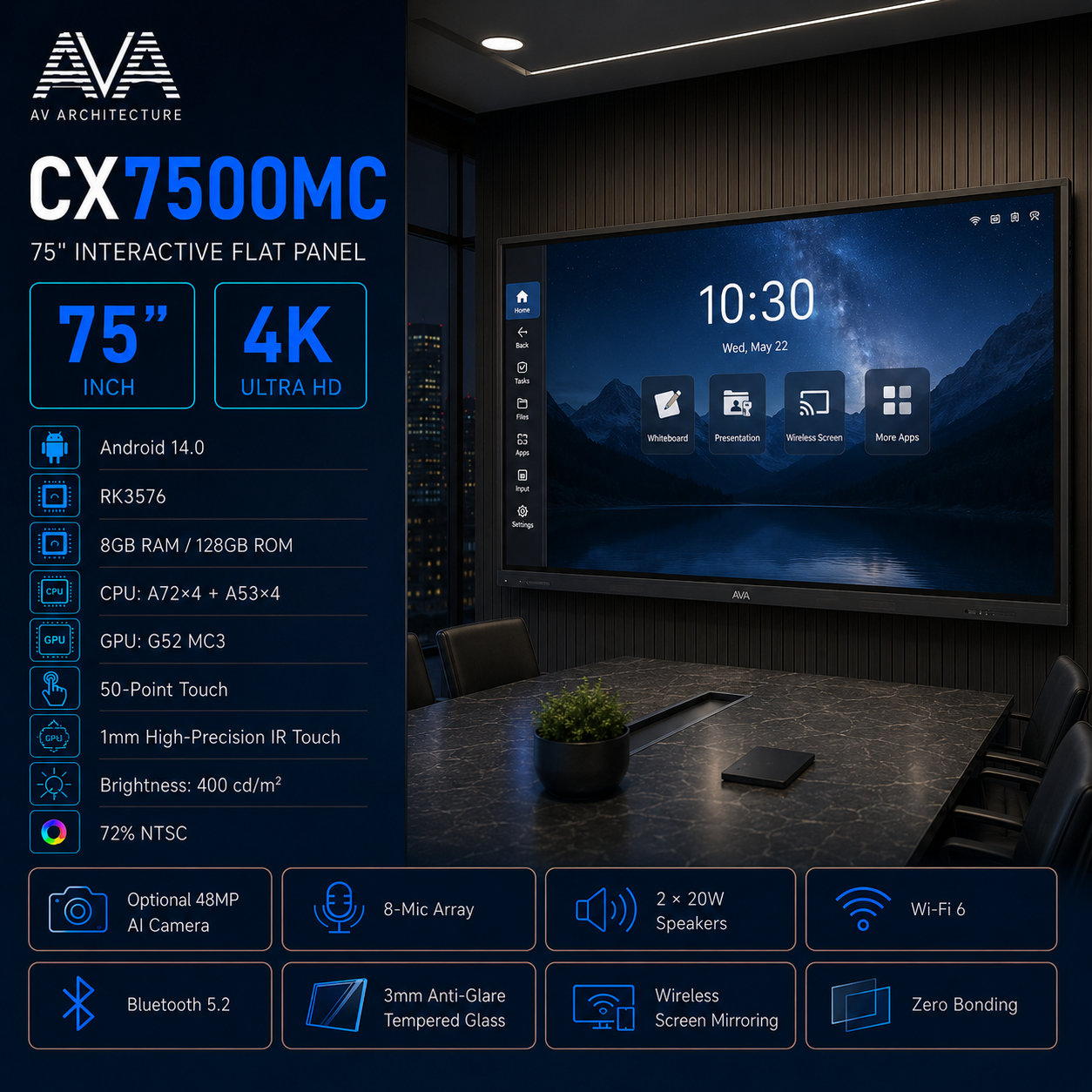

CX7500MC
Delivering performance and versatility in one sleek system, the AVA CX7500MC is a 75-inch 4K UHD interactive display designed for immersive collaboration and advanced video communication. It features Zero-Bonding technology, 3mm anti-glare tempered glass, automatic brightness adjustment, and DC dimming for comfortable long-term use. Equipped with a 48MP camera and an 8-microphone array, it supports auto framing, sound source localisation, intelligent noise reduction, and echo cancellation. Powered by Android 14 with Wi-Fi 6, USB-C PD 65W, 8GB RAM, and 128GB storage, it supports up to 50-point touch on Windows, making it a powerful all-in-one solution for modern classrooms and meeting spaces.
