| Specification | Details |
|---|---|
| Model | AVA SM3200MC Android Smart Interactive Digital Signage |
| Display Size | 32 Inches |
| Resolution | 1920 × 1080 Full HD |
| Aspect Ratio | 16:9 |
| Response Time | 8ms |
| Brightness | 300 cd/m² Typical |
| Contrast Ratio | 1200:1 Typical |
| Color Depth | 1.07 Billion Colors, 10-bit |
| Color Gamut | 72% NTSC Typical |
| Viewing Angle | 89° Left / Right and 89° Up / Down |
| Backlight Technology | ELED |
| Display Lifespan | ≥ 30,000 Hours |
| Touch Technology | Capacitive Touch |
| Touch Points | 10-Point Multi-Touch |
| Touch Interface | HID-USB |
| Processor Chip | Rockchip RK3576S |
| CPU | Quad-Core Cortex-A53 + Quad-Core Cortex-A72 |
| GPU | Mali-G52 MC3 |
| Memory | 8GB RAM / 128GB Internal Storage |
| Operating System | Android 14.0 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, Dual-Band 2.4GHz / 5GHz |
| Wi-Fi Operating Distance | 0–10m |
| Bluetooth | Bluetooth 5.3, Operating Distance 0–10m |
| Audio System | 2.0-Channel Audio |
| Speaker Power | 2 × 5W |
| Microphones | Dual Microphones with Noise Reduction and Echo Cancellation |
| Camera | External 8MP USB Camera for Portrait Orientation |
| USB Ports | USB 2.0 Host ×1 and USB 3.0 Host ×1 |
| USB Type-C | Type-C Port ×1, ADB Function Only |
| HDMI Input | HDMI Input ×1 |
| Power Input | DC Power Input |
| Battery Type | 21700-Type Lithium-Ion Battery |
| Battery Capacity | 14.6V / 15000mAh |
| Battery Life | Approximately 6–8 Hours |
| AC Adapter | 18V / 5A |
| Tilt Adjustment | −20° to 20°, ±3° |
| Swivel Adjustment | −15° to 15°, ±3° |
| Screen Rotation | Supports 90° Portrait and Landscape Rotation |
| Height Adjustment | 140mm |
| Gravity Sensor | Supports Automatic 90° Orientation Adjustment |
| Mobility | Mobile Stand with Universal Wheels |
| Product Color | White / Black |
| Control Buttons | Power, Volume Up and Volume Down |
| VESA Mount | 100 × 100 mm |
| Product Dimensions | 880 × 570 × 220 mm |
| Net Weight | 21.5 ±1 kg |
| Gross Weight | 22.5 ±1 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20%–80% RH |
| Storage Temperature | −20°C to 60°C |
| Storage Humidity | 10%–95% RH |
| Maximum Altitude | Below 5000m |
| Included Accessories |
AC Adapter ×1, 1.5m AC Power Cord ×1, Cover ×1, Screwdriver ×1, User Manual ×1, USB Cable ×1, Anti-Slip Pads ×5 and Bluetooth Voice Remote Control ×1 |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom

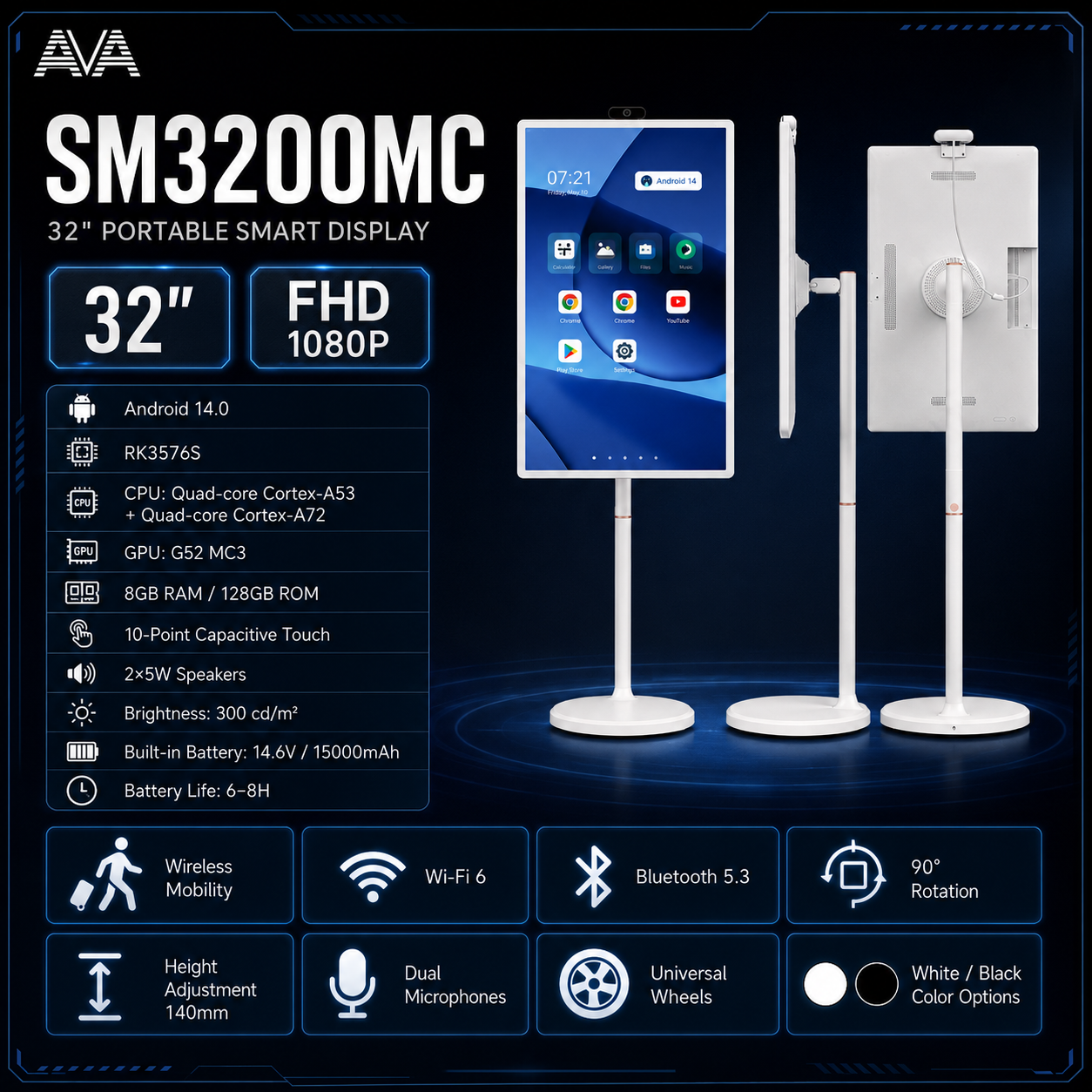

SM3200MC

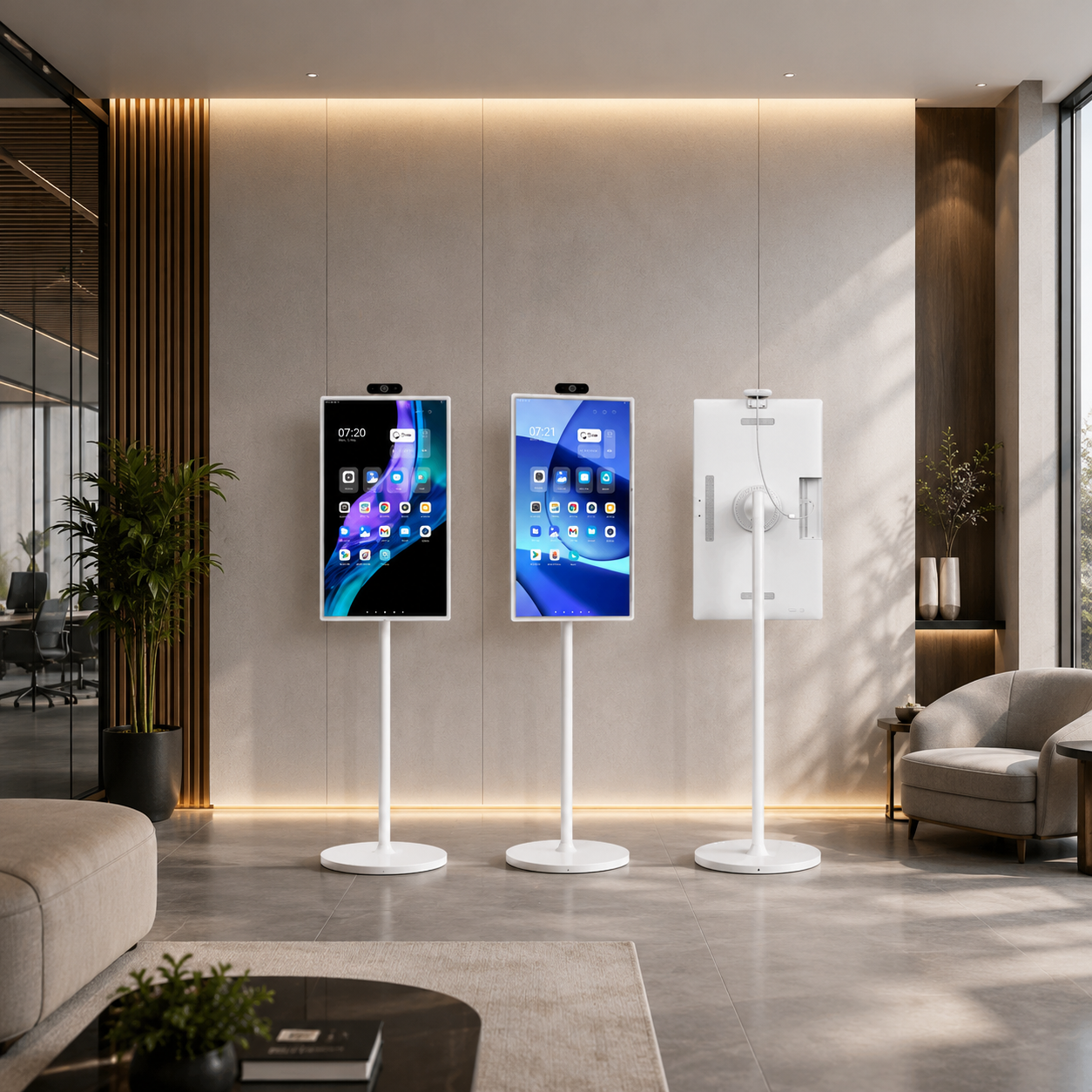

The AVA SM3200MC is a 32-inch Full HD Android smart interactive digital signage solution designed for flexible digital interaction and mobile use. Its responsive 10-point capacitive touchscreen, built-in battery, and mobile stand with universal wheels provide convenient operation across classrooms, meeting rooms, exhibitions, and presentation spaces. The display supports forward and backward tilt, left and right swivel, 140mm height adjustment, and 90-degree portrait or landscape rotation for versatile positioning.
Powered by the RK3576S octa-core processor, Android 14.0, 8GB RAM, and 128GB of internal storage, the SM3200MC delivers smooth and responsive performance for multimedia, communication, and interactive applications. Dual-band Wi-Fi 6 and Bluetooth 5.3 provide reliable wireless connectivity, while the integrated 15000mAh lithium-ion battery offers approximately 6–8 hours of operation. Dual microphones with noise reduction and echo cancellation, an external 8MP USB camera, and integrated 2 × 5W speakers make it an ideal solution for interactive learning, business meetings, video communication, and mobile presentations.
