| Specification | Details |
|---|---|
| Model | AVA EP5500TG Floor-standing Infrared Digital Signage |
| Screen Size | 55 inches |
| Backlight Type | WLED |
| Display Area | 1209.6 × 680.4 mm |
| Resolution | 3840 × 2160 pixels |
| Operating System | Android 12 |
| Memory | 2GB DDR / 32GB Storage |
| Touch Technology | 10-Point Infrared Touch |
| Brightness | 310 ± 10 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8ms |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H/V) |

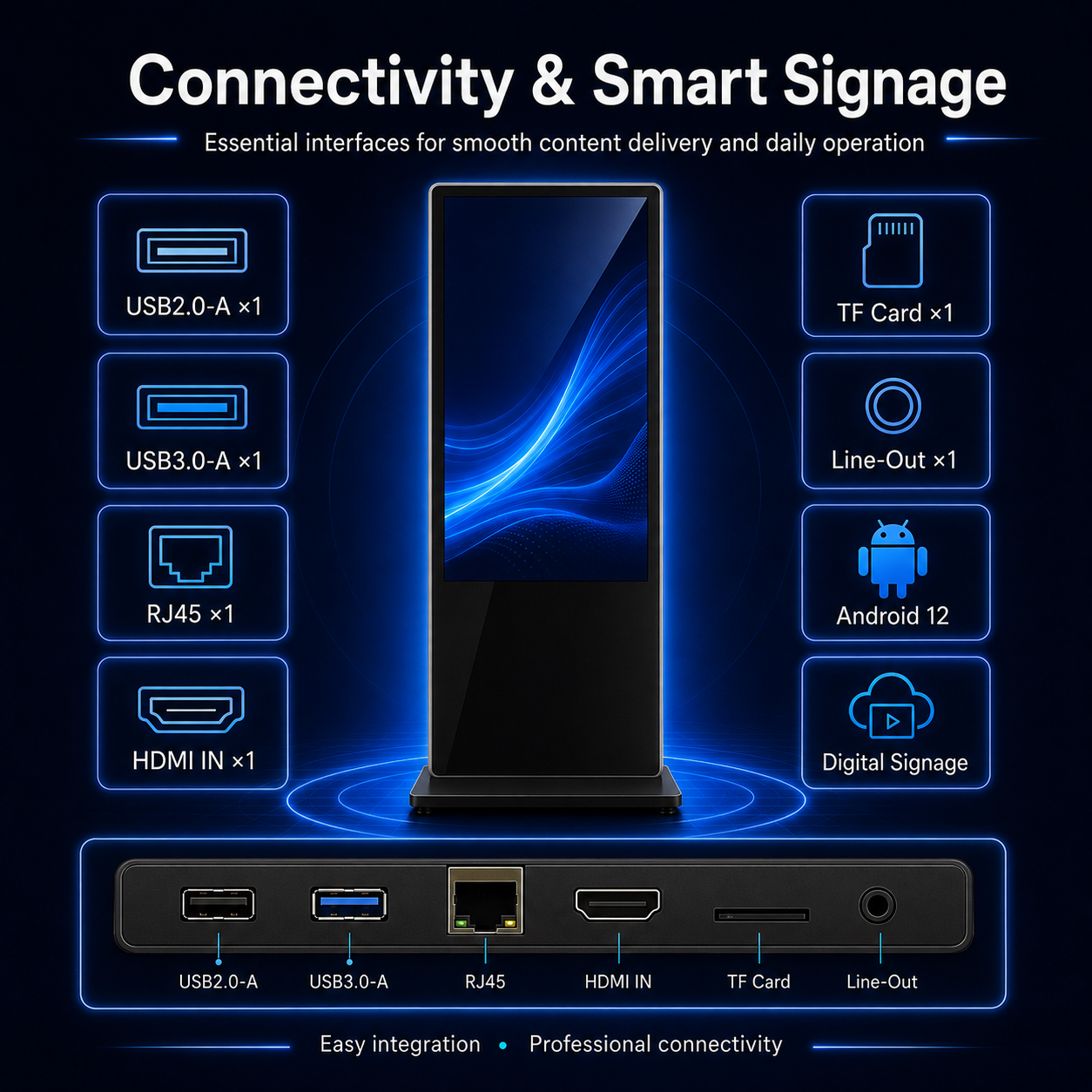

| Connectivity | USB 2.0, USB 3.0, TF Card, HDMI Input, LAN and Line-Out |
| Power Requirements | 100–240V, 50–60Hz |
| Maximum Power | ≤110W |
| Operating Hours | Up to 18 hours per day, 7 days per week |
| Product Dimensions | 1880 × 756 × 92.1 mm |
| Net Weight | 53 ± 1 kg |
| Shell Material | Aluminum Profile and Sheet Metal |
| Display Features |
Built-in Content Publishing System, Scheduled Playback, Remote Monitoring, USB Content Import and Horizontal/Vertical Display Support |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
EP5500TG

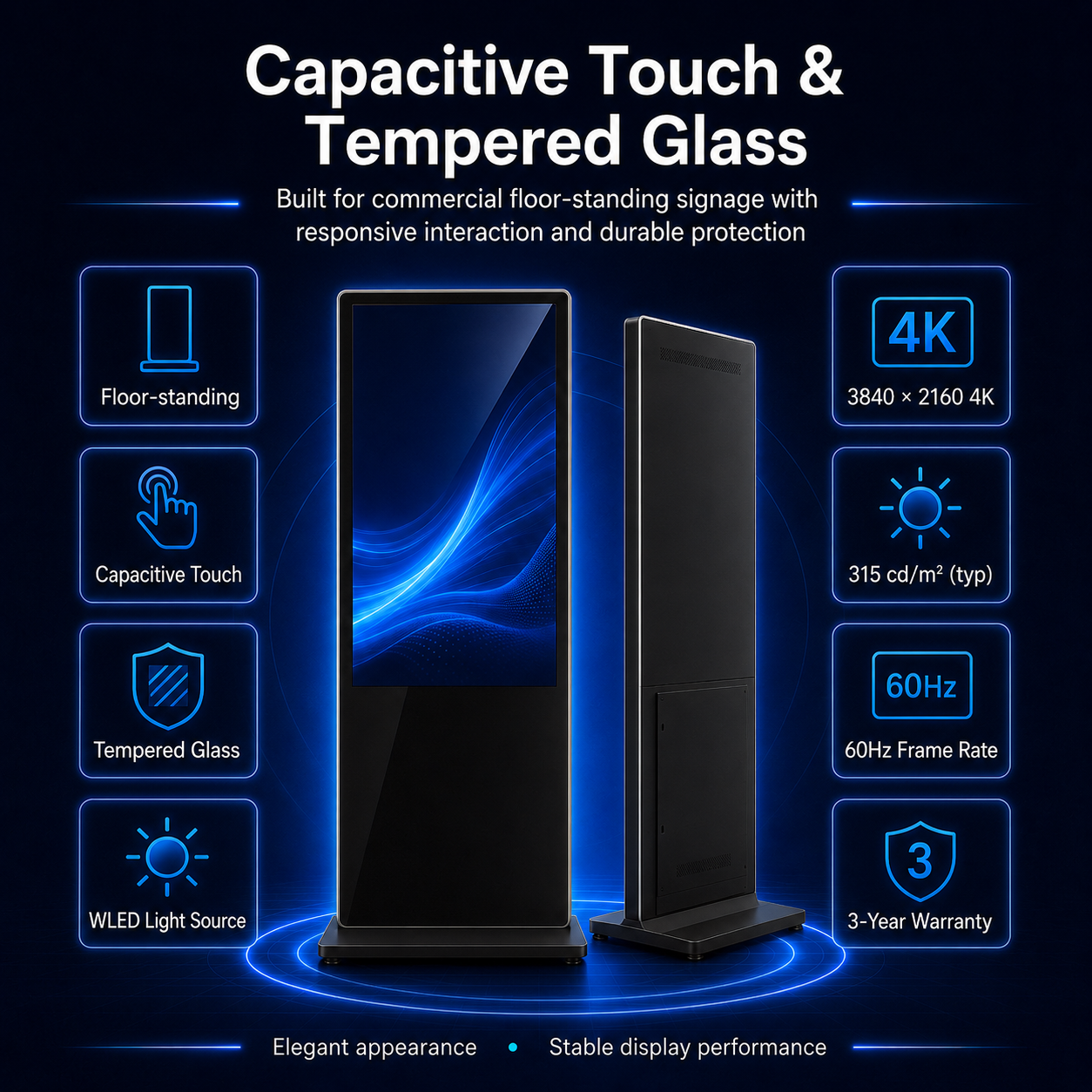

Designed for retail stores, showrooms, exhibitions, reception areas, and public information spaces, the AVA EP5500TG delivers a clear and engaging 55-inch floor-standing digital signage experience. Powered by Android 12 with 2GB DDR memory and 32GB storage, it supports smooth playback of images, videos, presentations, web pages, APK applications, and other multimedia content. Its 10-point infrared touch system enables responsive interaction, while the 3840 × 2160 4K display, 310 ± 10 cd/m² brightness, 1200:1 contrast ratio, and 178° viewing angle provide sharp and vivid content from different positions. With HDMI, USB 2.0, USB 3.0, TF card, LAN, and Line-Out connectivity, along with scheduled playback, USB content import, remote monitoring, and horizontal or vertical display support, the EP5500TG offers a flexible and professional solution for interactive advertising, digital information, and customer engagement.
