| Display Size | 86 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 300 ±10 cd/m² |
| Contrast Ratio | 1100:1 ~ 5000:1 (typical) |
| Viewing Angle | 178° (H/V) |
| Touch System | 10-Point Capacitive Touch |
| CPU / GPU | 8-Core A55 / G52 ×4 |
| RAM / Storage | 2GB / 32GB |
| Operating System | Android 12.0 |
| Power Consumption | ≤380W (Max), <0.5W (Standby) |
| Audio | 2 × 5W speakers |

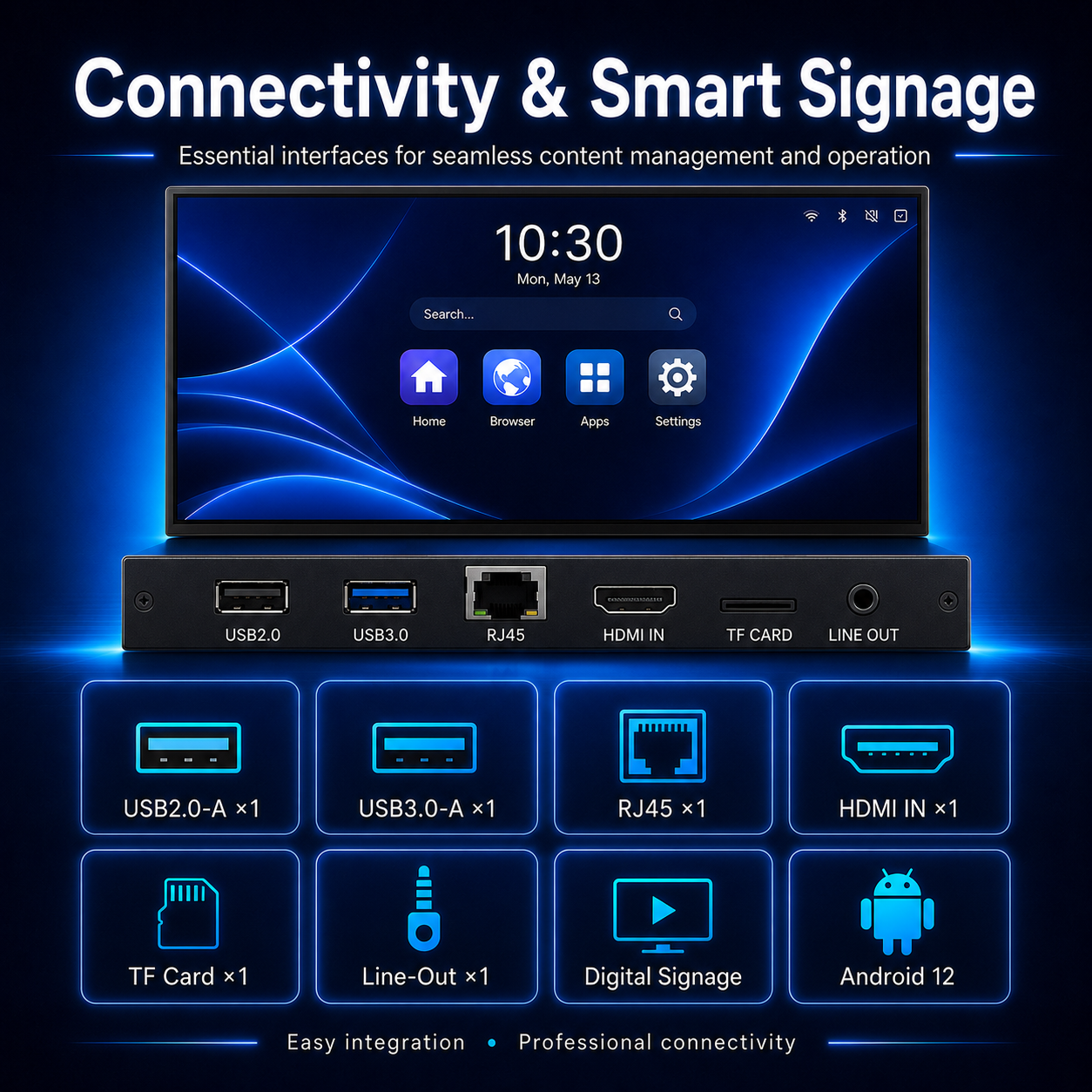

| Connectivity | USB 2.0, USB 3.0, HDMI 2.0, RJ45, TF Card, Line-Out, DC-IN |
| Dimensions (W × H × D) | 1955 × 1140 × 75 mm |
| Net Weight | TBD ±1kg |

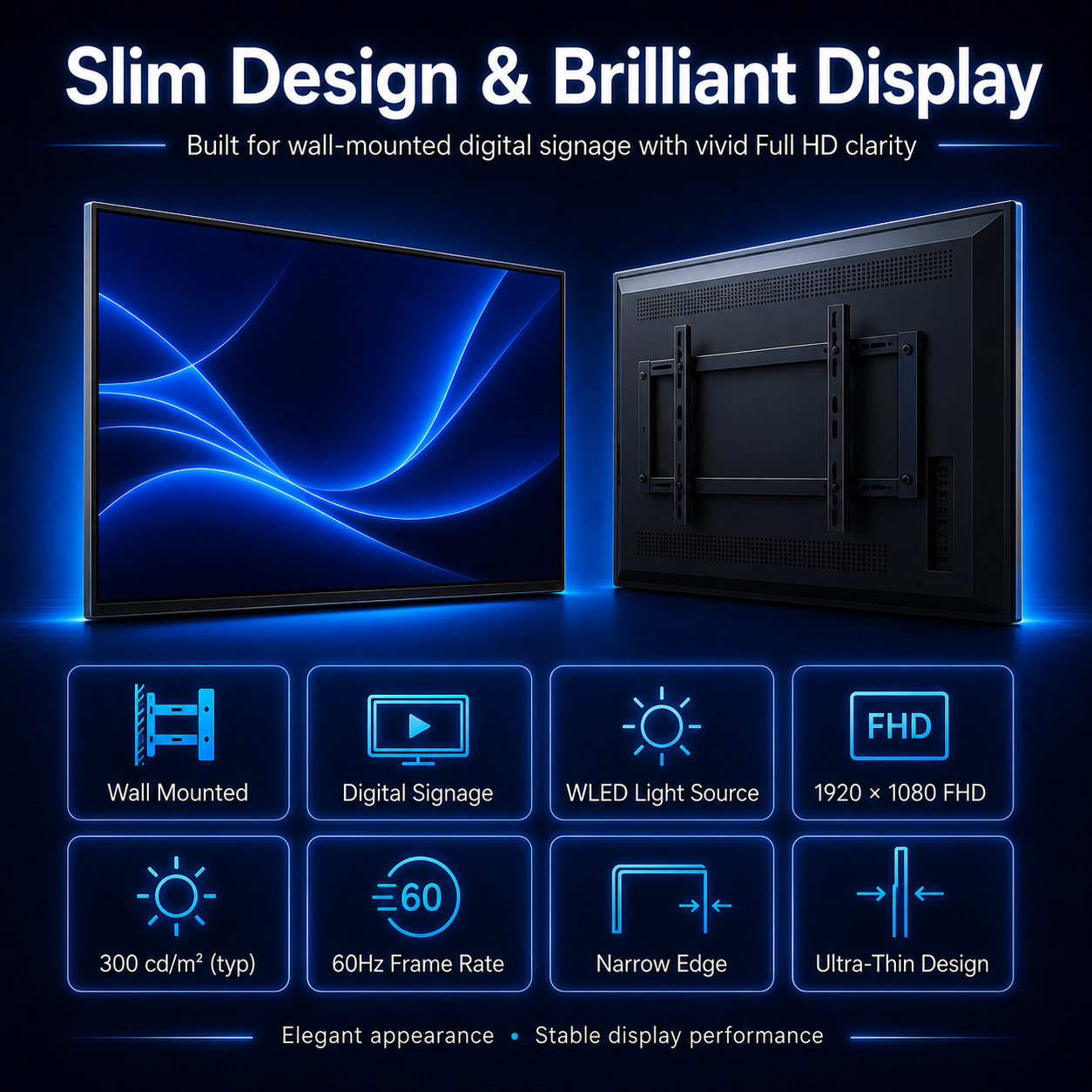

| VESA Mount | 400 × 400 mm (M6 Screws) |
| Material & Color | Aluminum Frame + Sheet Metal, Black |
| OSD Language | English, Chinese, etc. |
| Included Accessories | Remote Control, Power Cord, Quick Start Guide, Wall Mount |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
DX8601TG

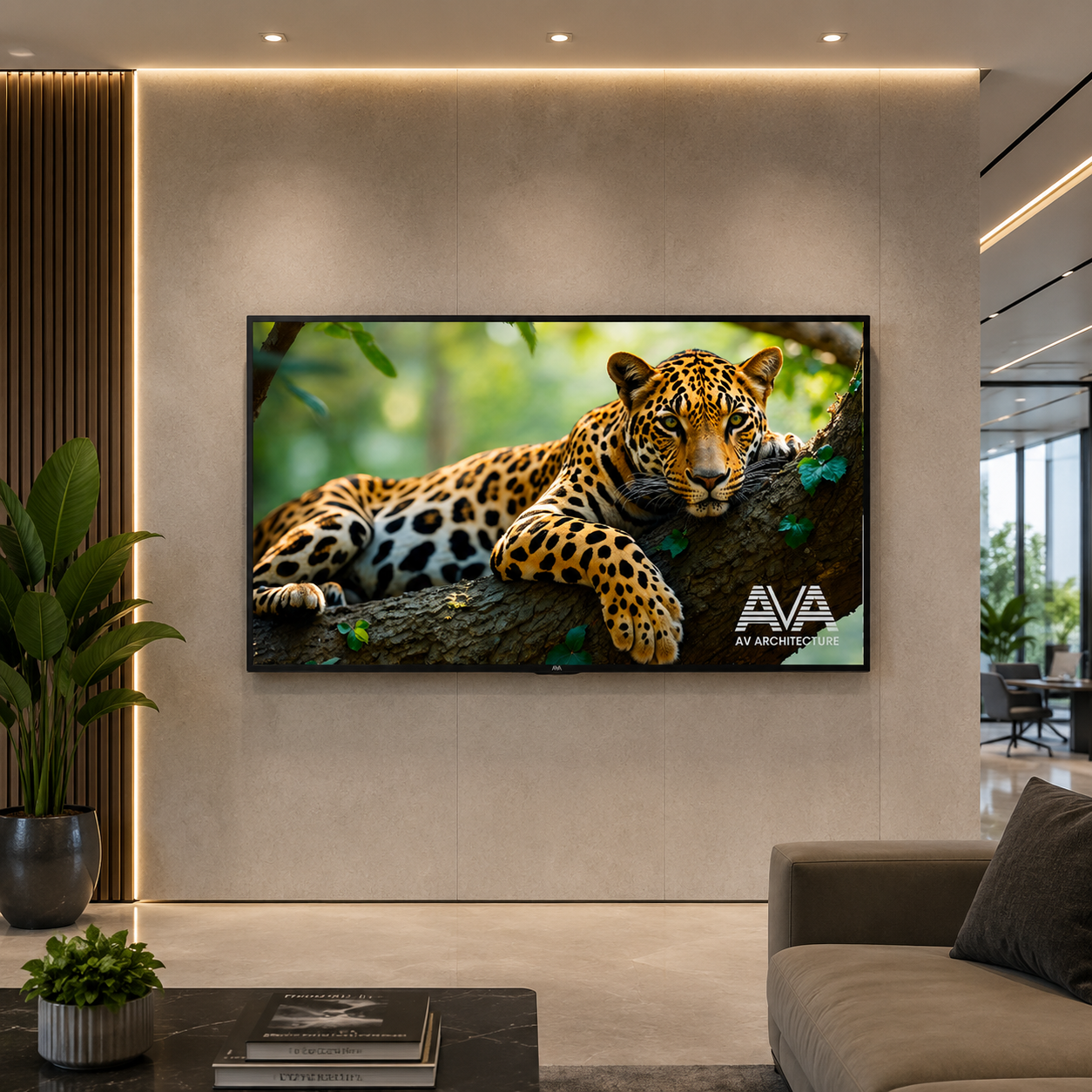

Designed for expansive retail spaces, corporate environments, hospitality venues, exhibition halls, and professional visual communication, the AVA DX8601TG delivers an outstanding 86-inch 4K UHD touch-enabled digital signage solution. Powered by an 8-Core A55 processor, Android 12.0, 2GB RAM, and 32GB storage, it provides reliable performance for displaying images, videos, presentations, web pages, office files, and Android applications. Its LED display offers a sharp 3840 × 2160 resolution, 300 ± 10 cd/m² brightness, typical contrast options of 1100:1, 1200:1, 4000:1, or 5000:1, and a wide 178° horizontal and vertical viewing angle for clear and consistent content visibility. With 10-point capacitive touch, intelligent content scheduling, horizontal and vertical display support, remote monitoring, USB 2.0, USB 3.0, HDMI 2.0, RJ45 Ethernet, TF card support, Line-Out, and built-in dual 5W speakers, the DX8601TG is an efficient solution for interactive advertising, extra-large information displays, and automated content management.
