| Specification | Details |
|---|---|
| Model | AVA DX8601G Wall-Mounted Digital Signage |
| Display Size | 86 Inches |
| Panel Grade | A Grade |
| Backlight | LED |
| Resolution | 3840 × 2160 Pixels (4K UHD) |
| Brightness | 450 ± 10 cd/m² (Typical) |
| Contrast Ratio | 1100:1 / 1200:1 / 4000:1 / 5000:1 (Typical) |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H/V) |
| Display Colors | 16.7 Million Colors, 99% sRGB |
| Processor | 8-Core A55 |
| GPU | G52 × 4 |
| Memory | 2GB RAM / 32GB Storage |
| Operating System | Android 12.0 |
| Audio | 2 × 5W Speakers |
| Power Consumption | ≤380W Maximum / <0.5W Standby |
| Power Input | AC 100–240V, 50/60Hz |
| Connectivity |
DC 12V Input × 1, USB 2.0 × 1, USB 3.0 × 1, RJ45 Ethernet 100M × 1, HDMI IN 2.0 × 1, TF Card × 1 and Line-Out × 1 |
| Display Orientation | Horizontal and Vertical |
| VESA Mount | 400 × 400 mm, 4 × M6 Screws |
| Dimensions | 1940.5 × 1111.5 × 76 mm |
| Net Weight | 53 ± 1 kg |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom

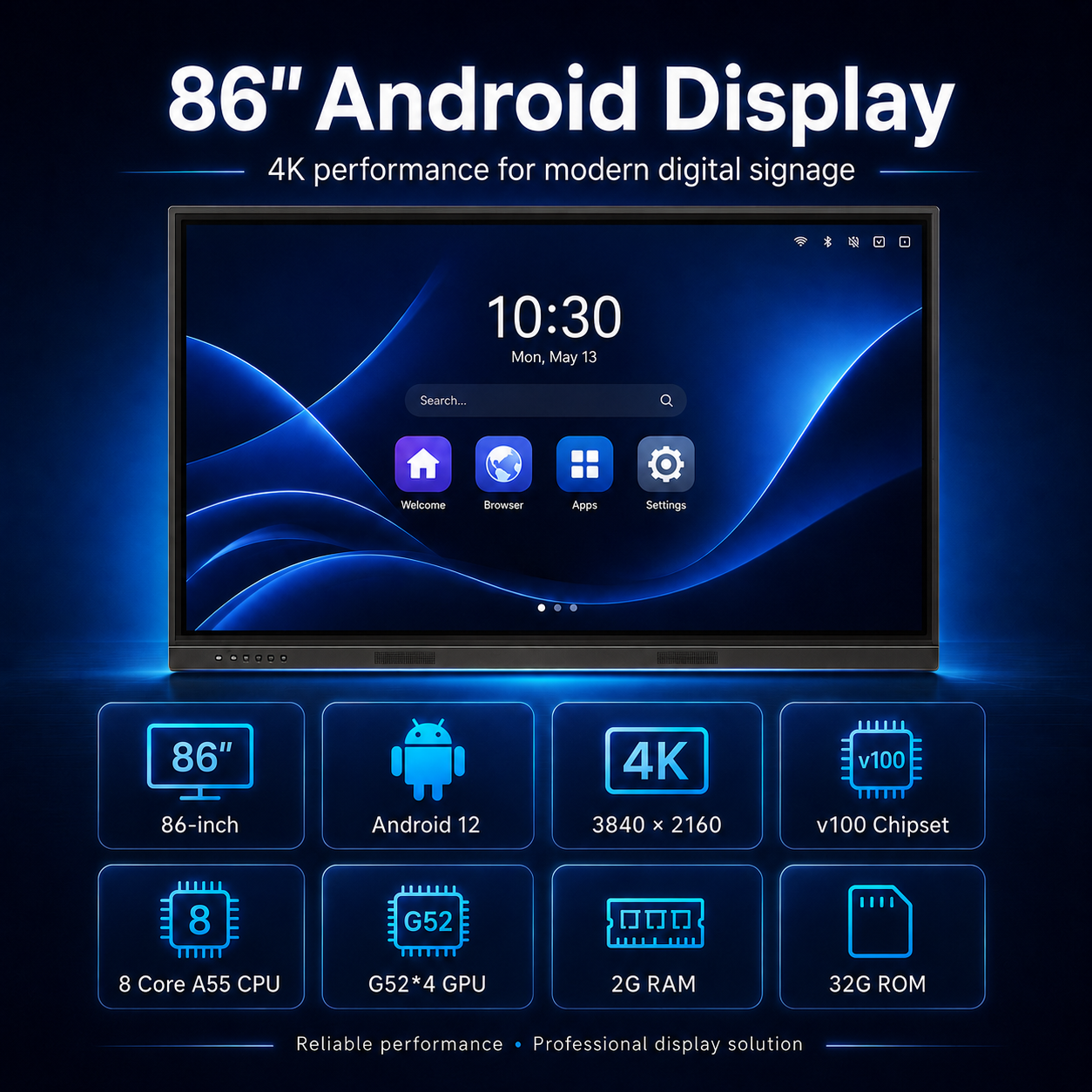

DX8601G
Designed for expansive retail spaces, corporate environments, hospitality venues, exhibition halls, and professional visual communication, the AVA DX8601G delivers an outstanding 86-inch 4K UHD digital signage solution. Powered by an 8-Core A55 processor, Android 12.0, 2GB RAM, and 32GB storage, it provides reliable performance for displaying images, videos, presentations, web pages, office files, and Android applications. Its LED display offers a sharp 3840 × 2160 resolution, 450 ± 10 cd/m² brightness, typical contrast options of 1100:1, 1200:1, 4000:1, or 5000:1, and a wide 178° horizontal and vertical viewing angle for clear and consistent content visibility. With intelligent content scheduling, horizontal and vertical display support, remote monitoring, USB playback, HDMI input, RJ45 Ethernet, TF card support, Line-Out, and built-in dual 5W speakers, the DX8601G is an efficient solution for digital advertising, extra-large information displays, and automated content management.
