| Specification | Details |
|---|---|
| Model | AVA PX8600MC Interactive Flat Panel |
| Screen Size | 86 Inches |
| Resolution | 3840 × 2160 Pixels, 4K UHD |
| Aspect Ratio | 16:9 |
| Display Area | 1896 × 1067 mm |
| Pixel Pitch | 0.372 × 0.372 mm |
| Refresh Rate | 60Hz |
| Response Time | 8ms |
| Display Brightness | 400 cd/m² Typical |
| Contrast Ratio | 1100:1 / 1200:1 / 1300:1 / 5000:1 |
| Display Colors | 1.07 Billion Colors, 10-bit |
| Color Gamut | 72% NTSC |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Backlight Technology | DLED |
| Display Lifetime | ≥ 50,000 Hours |
| Protective Glass | 3mm Anti-Glare Tempered Glass |
| Touch Technology | Capacitive Recognition |
| Touch Points | 20-Point Multi-Touch |
| Touch Accuracy | ±2mm |
| Minimum Object Size | 8mm |
| Touch Tool | Finger or Passive Capacitive Pen |
| Processor | RK3588, Quad-Core Cortex-A76 + Quad-Core Cortex-A55 |
| Processor Frequency | 2.4GHz |
| GPU | ARM Mali-G610 MC4 |
| Memory | 16GB RAM / 256GB Storage |
| Operating System | Android 15.0 |
| Optional Camera | 48MP Magnetic AI Camera, Upper-Frame Installation, 105° Diagonal and 85° Horizontal Viewing Angle |
| Camera Features | Sound Source Localization and Voice Enhancement |
| Optional Microphones | 8-Microphone Array with 0–8m Pickup Distance |
| Microphone Pickup Angle | 0°–180° |
| Microphone Features | Echo Cancellation, Background Noise Suppression and Gain Compensation |
| Audio System | 2.0-Channel Audio |
| Speaker Power | 2 × 20W |
| Wi-Fi | Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax, Dual-Band 2.4GHz / 5GHz |
| Wi-Fi Operating Distance | 0–10m |
| Bluetooth | Bluetooth 5.2, 2.4GHz, Operating Distance 0–10m |
| USB Ports | USB 3.0 ×2 and USB 2.0 ×1 |
| USB Type-C Ports | USB Type-C Input ×1 and USB Type-C Output ×1 |
| Touch Output | Touch Out 3.0 ×3 |
| Video Ports | HDMI Input ×3, HDMI Output ×1, DisplayPort Input ×1 and VGA Input ×1 |
| Additional Ports | RS232 ×1, Optical ×1, Audio Input ×1, RJ45 Input ×1 and RJ45 Output ×1 |
| OPS Module Support | Optional OPS Module: 120 × 180 × 30 mm or 195 × 180 × 30 mm |
| Special Features |
Wireless Screen Mirroring, Picture-in-Picture, One-Net, Network Sharing, Eye Protection, Screen Lock, Touch Lock and Intelligent Wake-Up |
| Power Requirements | Rated 100–240V AC, Maximum 90–264V AC, 50/60Hz, 2.8A |
| Maximum Power Consumption | 460W |
| Standby Power | ≤ 0.5W |
| Product Dimensions | 1955 × 1140 × 90 mm |
| Package Dimensions | 2120 × 220 × 1325 mm |
| Thickness Including Bracket | 152 mm |
| Net Weight | 67 ±1 kg |
| Gross Weight | 82.5 ±1 kg |
| VESA Mount | 800 × 400 mm |
| Wall-Mount Screw | M8 × 20 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Storage Temperature | −20°C to 60°C |
| Storage Humidity | 10%–90% RH |
| Maximum Operating Altitude | Below 5000m |
| Included Accessories | Power Cord ×1, Stylus Pen ×1, Wall Mount ×1 and Quick Start Guide ×1 |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom

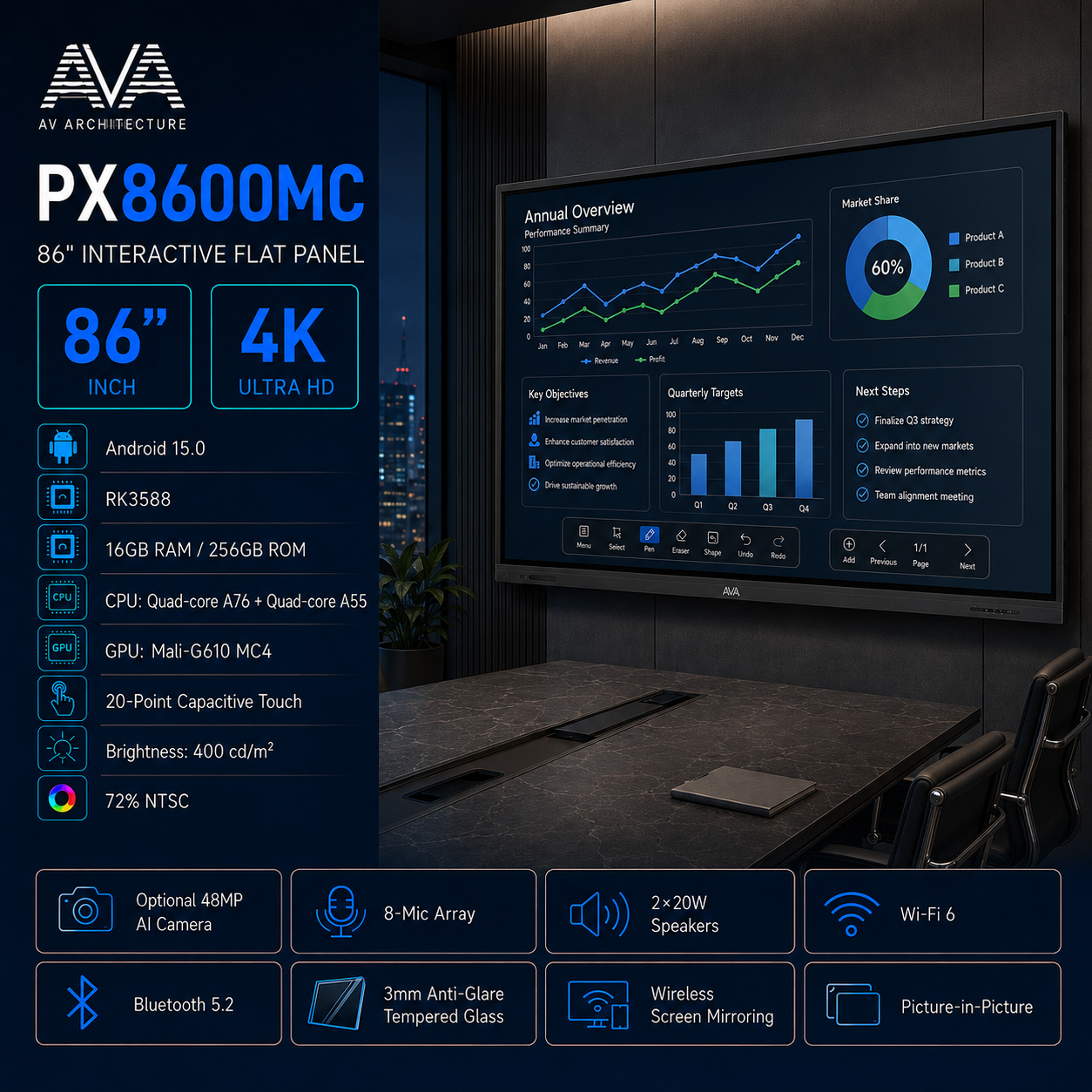

PX8600MC
Designed for high-performance interactive environments, the AVA PX8600MC is an 86-inch 4K UHD interactive flat panel built to enhance digital collaboration, communication, and learning experiences. Powered by the advanced RK3588 octa-core processor, featuring a quad-core Cortex-A76 and quad-core Cortex-A55 architecture, along with 16GB RAM and 256GB of internal storage, the panel delivers smooth and responsive performance across demanding multitasking applications.
Running on Android 15.0, the PX8600MC supports One-Net unified networking, Wi-Fi 6 dual-band connectivity, wireless screen mirroring, Picture-in-Picture mode, and precise 20-point capacitive multi-touch interaction. An optional 48MP magnetic AI camera and 8-microphone array provide enhanced video conferencing capabilities, including sound-source localization, voice enhancement, echo cancellation, background-noise suppression, and a pickup range of up to 8 meters.

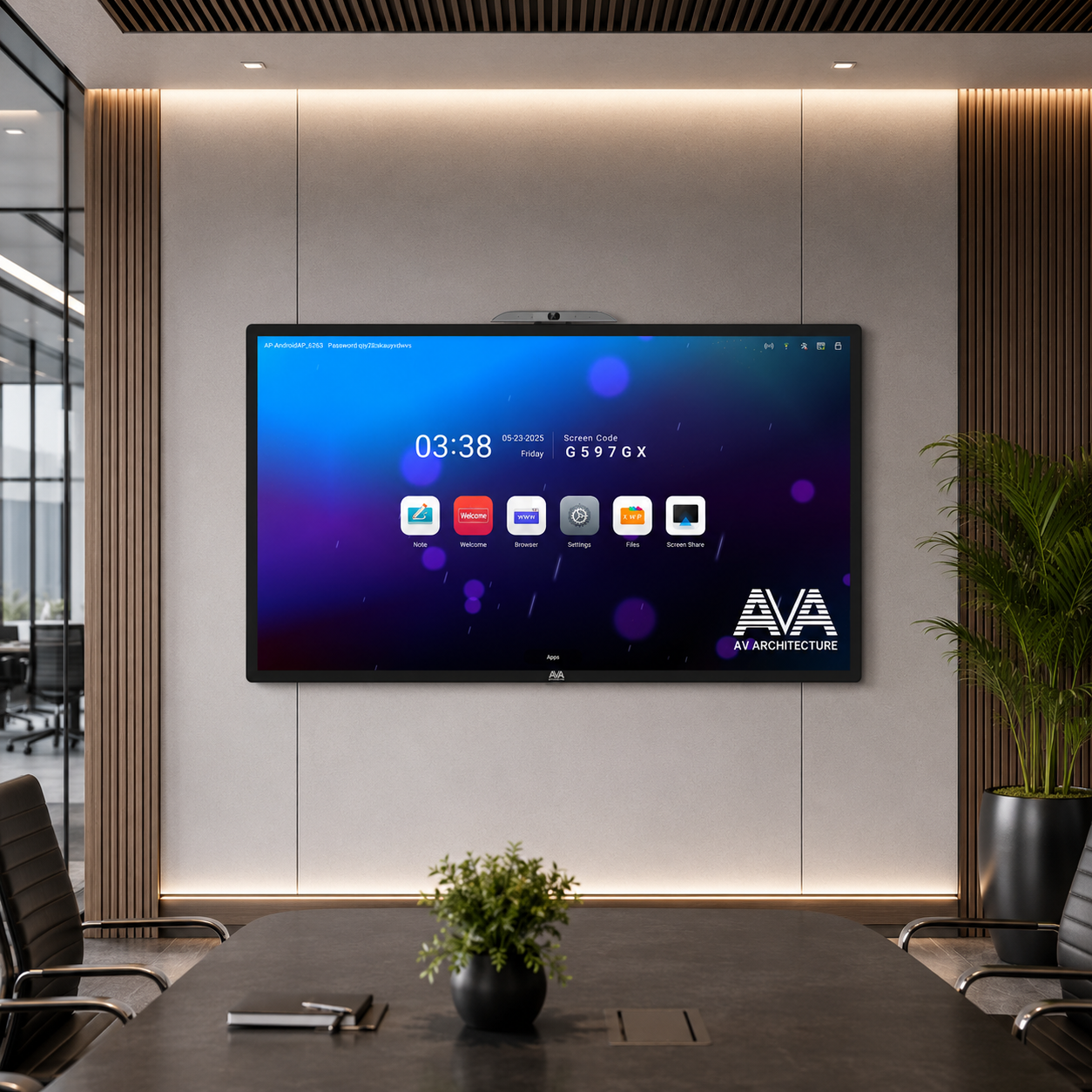

With its powerful performance, intelligent connectivity, and advanced interactive features, the AVA PX8600MC is an ideal solution for classrooms, meeting rooms, conference halls, training centers, and hybrid collaboration spaces.
