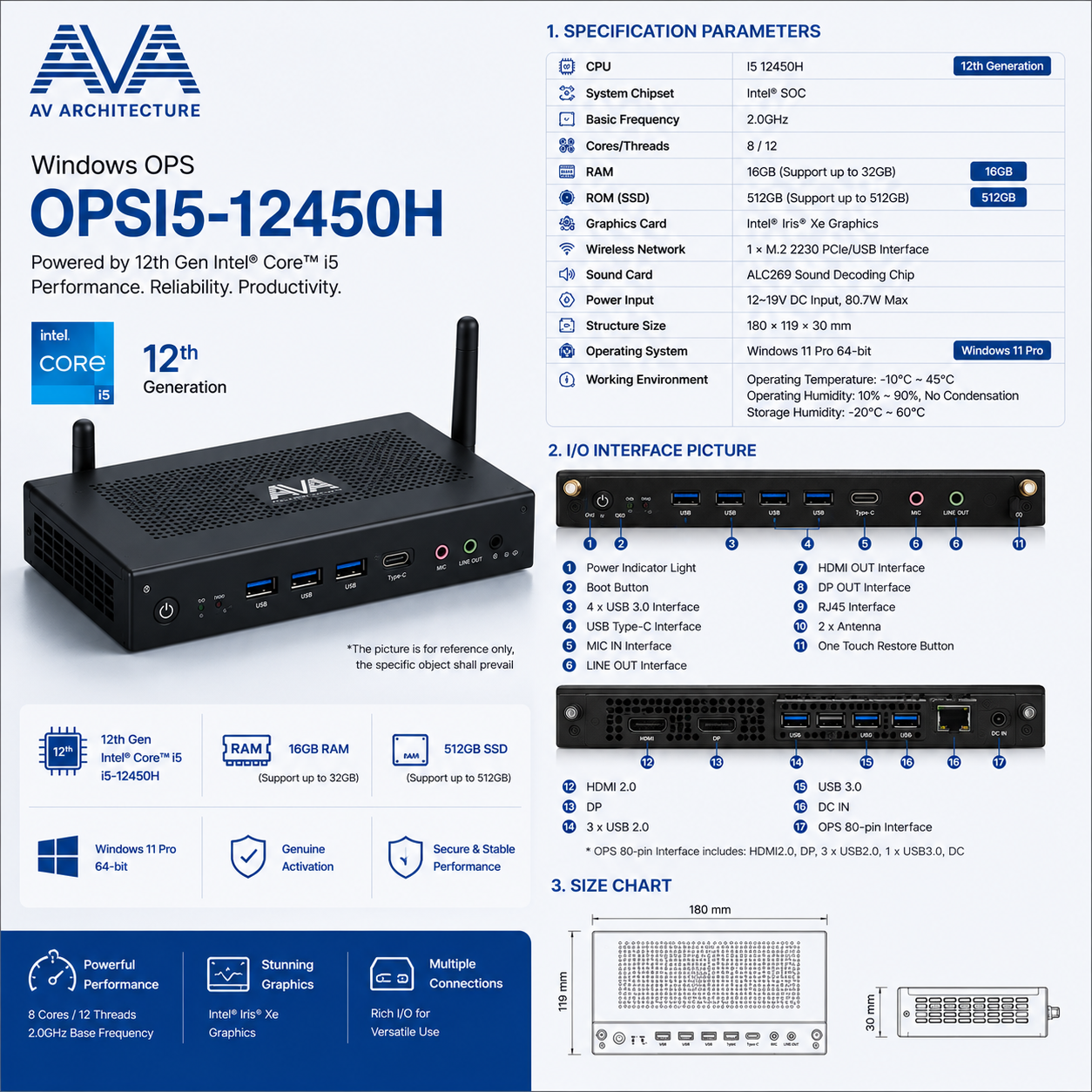

| Specification | Details |
|---|---|
| Model | AVA OPSI5-12450H |
| Processor | Intel Core i5-12450H |
| System Chipset | Intel SoC |
| Base Frequency | 2.0GHz |
| Cores / Threads | 8 Cores / 12 Threads |
| Memory | 8GB RAM, expandable up to 32GB |
| Storage | 256GB SSD, expandable up to 512GB |
| Graphics | Intel Iris Xe Graphics |
| Wireless Networking | 1 × M.2 2230 PCIe/USB Interface |
| Sound Card | ALC269 Sound Decoding Chip |
| USB Ports | 4 × USB 3.0 and 1 × USB Type-C |
| Video Outputs | HDMI Output and DisplayPort Output |
| Network Interface | 1 × RJ45 LAN |
| Audio Interfaces | MIC Input and Line Output |
| Additional Interfaces | Power Indicator, Boot Button, Two Antennas and One-Touch Restore Button |
| OPS 80-Pin Interface | HDMI 2.0, DP, 3 × USB 2.0, USB 3.0 and DC |
| Power Input | 12–19V DC, maximum 80.7W |
| Dimensions | 180 × 119 × 30 mm |
| Operating System | Windows 10 / Windows 11 64-bit |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Temperature | -20°C to 60°C |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
OPSI5-12450H
Designed to enhance interactive displays in classrooms, meeting rooms, training centers, and professional workspaces, the AVA OPSI5-12450H delivers reliable computing performance in a compact OPS form factor. Powered by an Intel Core i5-12450H processor with 8 cores and 12 threads, 8GB RAM expandable up to 32GB, and a 256GB SSD expandable up to 512GB, it provides smooth performance for presentations, educational applications, office software, video conferencing, and multimedia content. Intel Iris Xe Graphics supports clear visual output, while HDMI, DisplayPort, USB 3.0, USB Type-C, RJ45 LAN, microphone input, and Line-Out provide flexible connectivity. With Windows 10 and Windows 11 64-bit support, dual antennas, and a One-Touch Restore function, the OPSI5-12450H offers a practical and efficient computing solution for compatible interactive flat panels.
