| Specification | Details |
|---|---|
| Model | AVA DX11500 Commercial Display Android |
| Display Size | 115 Inches |
| Panel Grade | A Grade |
| Backlight | LED |
| Resolution | 3840 × 2160 Pixels (4K UHD) |
| Brightness | 300 cd/m² (Typical) |
| Contrast Ratio | 5000:1 (Typical) |
| Pixel Pitch | 0.285375 × 0.285375 mm (H × V) |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H/V) |
| Panel Lifetime | 50,000 Hours Minimum |
| Color Saturation | 69% |
| Display Area | 2540.3 × 1432.6 mm |
| Display Colors | 1.07 Billion Colors |
| Chipset | Amlogic 311D2 |
| Processor | Quad-Core ARM Cortex-A73 + Quad-Core Cortex-A53 |
| GPU | Arm Mali-G52 MP8 |
| Operating System | Android 14.0 |
| Memory | 8GB RAM / 128GB Storage |
| Audio | 2 × 10W Speakers |
| Power Requirements | AC 100–240V, 50/60Hz, 8.5A |
| Power Consumption | ≤850W Maximum / <0.5W Standby |
| Input Interfaces |
HDMI IN × 2, USB 3.0 × 2, USB 2.0 × 1, Type-C × 1, Audio IN × 1, DP IN × 1, VGA IN × 1, RS232 × 1 and RJ45 IN × 1 |
| Output Interfaces |
Touch OUT × 2, HDMI OUT × 1, Optical OUT × 1, Audio OUT × 1 and RJ45 OUT × 1 |
| Optional OPS Interfaces |
USB 2.0 × 2, USB 3.0 × 2, LAN × 1, HDMI OUT × 1, Line-Out × 1 and MIC-IN × 1 |
| VESA Mount | 1000 × 400 mm |
| Dimensions | 2572.1 × 1448.5 × 105.9 mm |
| Packaging Dimensions | 2777.4 × 300 × 1710 mm |
| Net Weight | 78.52 ± 1 kg |
| Gross Weight | 119.31 ± 1 kg, With Pallet and Without Stand |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
DX9800

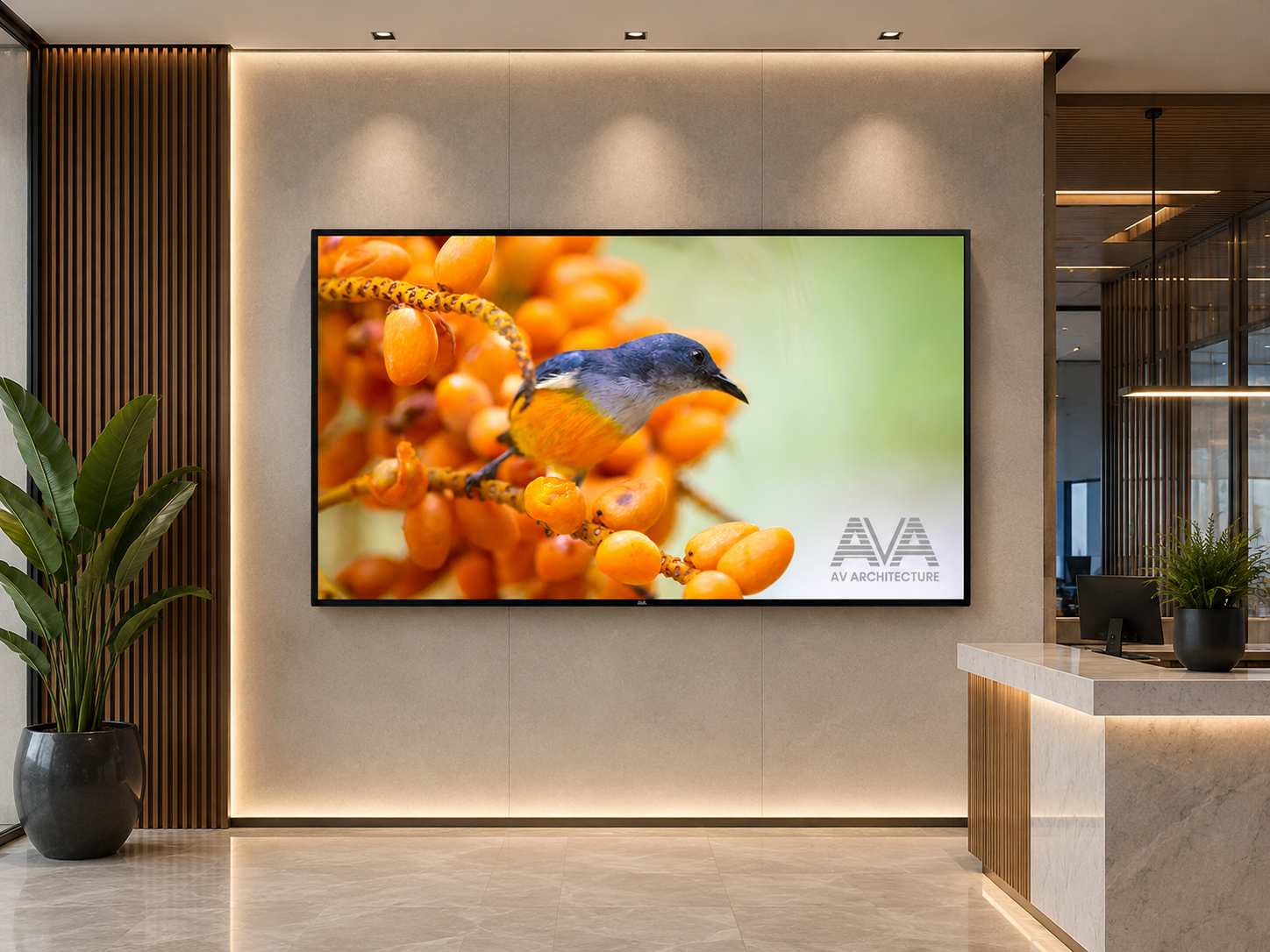

Designed for expansive retail spaces, corporate environments, hospitality venues, exhibition halls, control rooms, and professional visual communication, the AVA DX9800 delivers an impressive 98-inch 4K UHD commercial display solution. Powered by a T982-SR chipset, Android 13.0, 4GB RAM, and 32GB storage, it provides smooth and reliable performance for displaying images, videos, presentations, web content, office files, and Android applications. Its LED display offers a sharp 3840 × 2160 resolution, 400 cd/m² brightness, a 1200:1 contrast ratio, and a wide 178° horizontal and vertical viewing angle for clear and consistent content visibility. With wireless screen mirroring, Wi-Fi 6 dual-band connectivity, Bluetooth 5.2, automatic signal-source switching, HDMI inputs, USB connectivity, RJ45 Ethernet, RS232 control, optional OPS support, and built-in dual 10W speakers, the DX9800 is an efficient solution for digital advertising, large-format information displays, presentations, and professional content management.
