Specification |
Details |
|---|---|
| Model | AVA DX3200 Wall-Mounted Digital Signage |
| Display Size | 32 Inches |
| Panel Grade | A Grade |
| Backlight | LED |
| Resolution | 1920 × 1080 Pixels (Full HD) |
| Brightness | 350 cd/m² (Typical) |
| Contrast Ratio | 1000:1 / 1200:1 (Typical) |
| Refresh Rate | 60Hz |
| Viewing Angle | 178° (H/V) |
| Display Colors | 1.07 Billion Colors (8-bit + Hi-FRC) |
| Processor | 8-Core Cortex-A55 |
| GPU | G52 × 4 |
| Memory | 2GB RAM / 32GB Storage |
| Operating System | Android 12.0 |
| Audio | 2 × 5W Speakers |
| Power Consumption | ≤65W Maximum / <0.5W Standby |

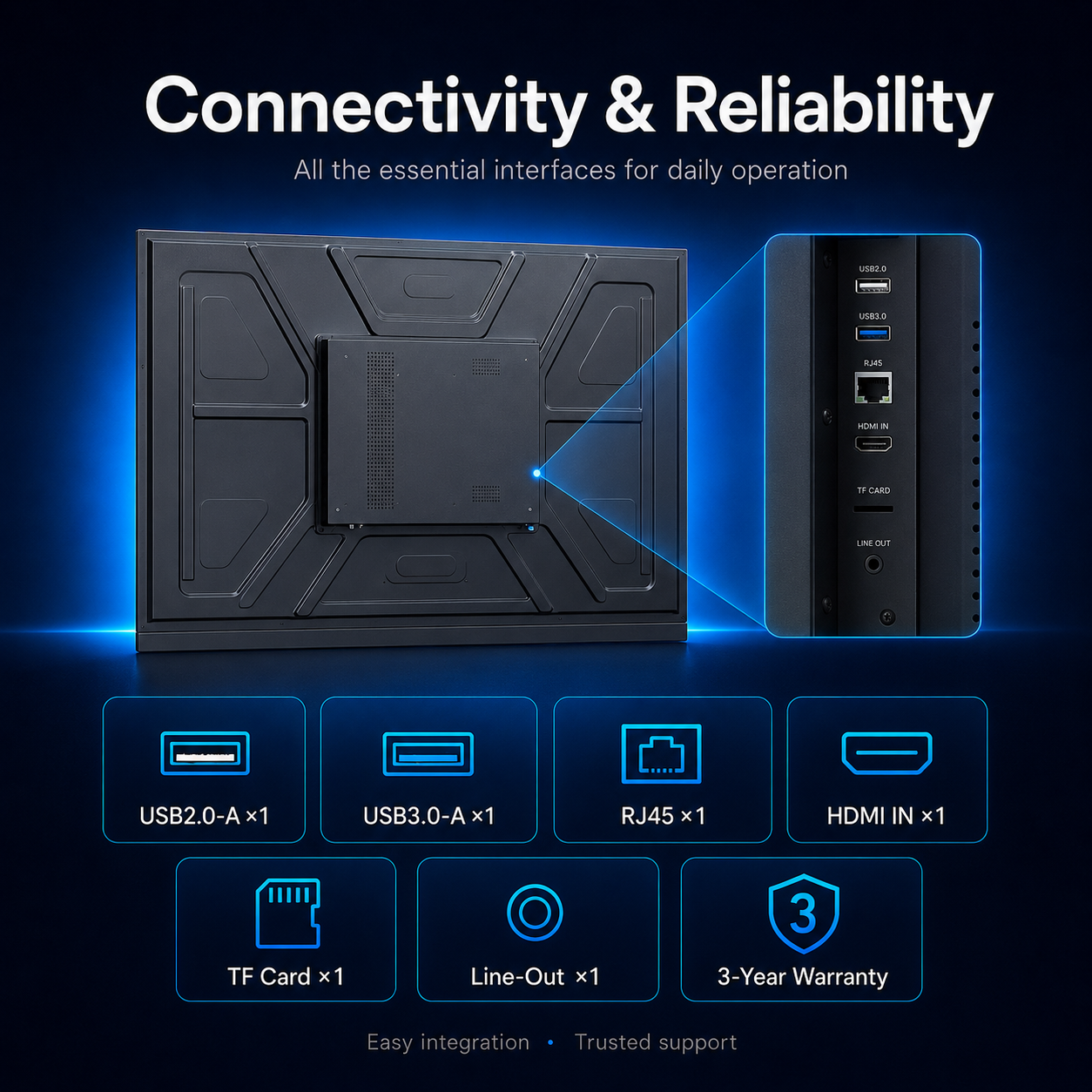

| Connectivity |
USB 2.0, USB 3.0, HDMI IN 2.0, RJ45 Ethernet, TF Card and Line-Out |
| Display Orientation | Horizontal and Vertical |
| VESA Mount | 400 × 200 mm |
| Dimensions | 718.2 × 412.7 × 46.2 mm |
| Net Weight | 6.65 ± 1 kg |
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
Home Automation
GM – Master Gateways
GR – Repeater Gateways
TPS
TPM
TPL
TPX
SMP – Motion Presence Sensor
SIR – Infrared Sensor
SDW – Door Window Sensor
SHT – Humidity Temp Sensor
SSM – Smoke Sensor
SGA – Gas Sensor
SWL – Water Leakage Sensor
TS – Touch Switches
CS – Curtain Switches
HS – High Current Switches
DL – Door Lock
IC – Intercom
DX3200

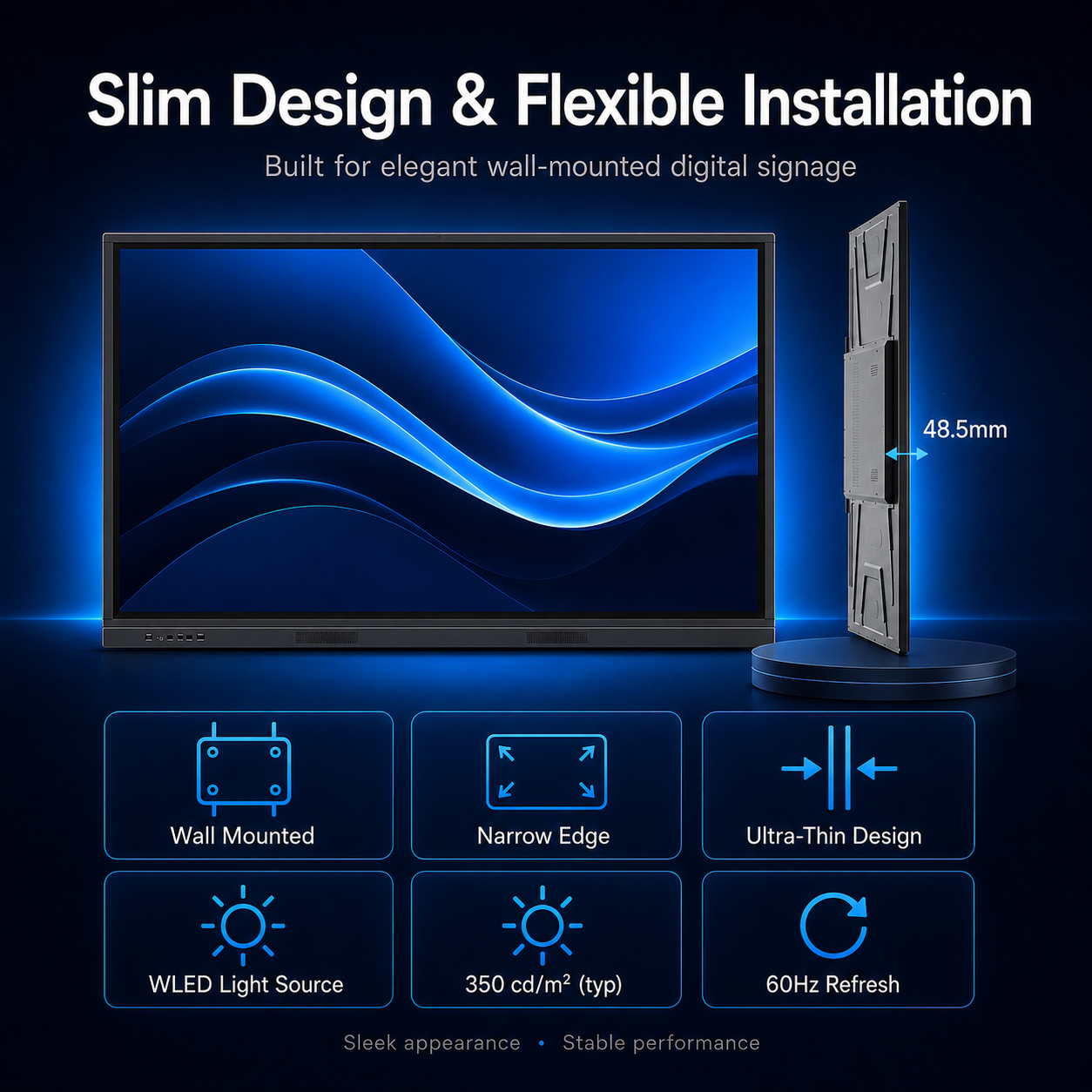

Designed for retail spaces, offices, hospitality environments, and professional visual communication, the AVA DX3200 delivers a reliable 32-inch Full HD digital signage solution. Powered by an 8-Core Cortex-A55 processor, Android 12.0, 2GB RAM, and 32GB storage, it provides smooth playback for images, videos, presentations, web pages, and Android applications. Its LED display offers 1920 × 1080 resolution, 350 cd/m² brightness, and a wide 178° viewing angle for clear and consistent content visibility. With intelligent scheduling, horizontal and vertical display support, remote monitoring, USB playback, HDMI input, RJ45 Ethernet, TF card support, and built-in dual 5W speakers, the DX3200 is an efficient solution for digital advertising, information displays, and automated content management.
